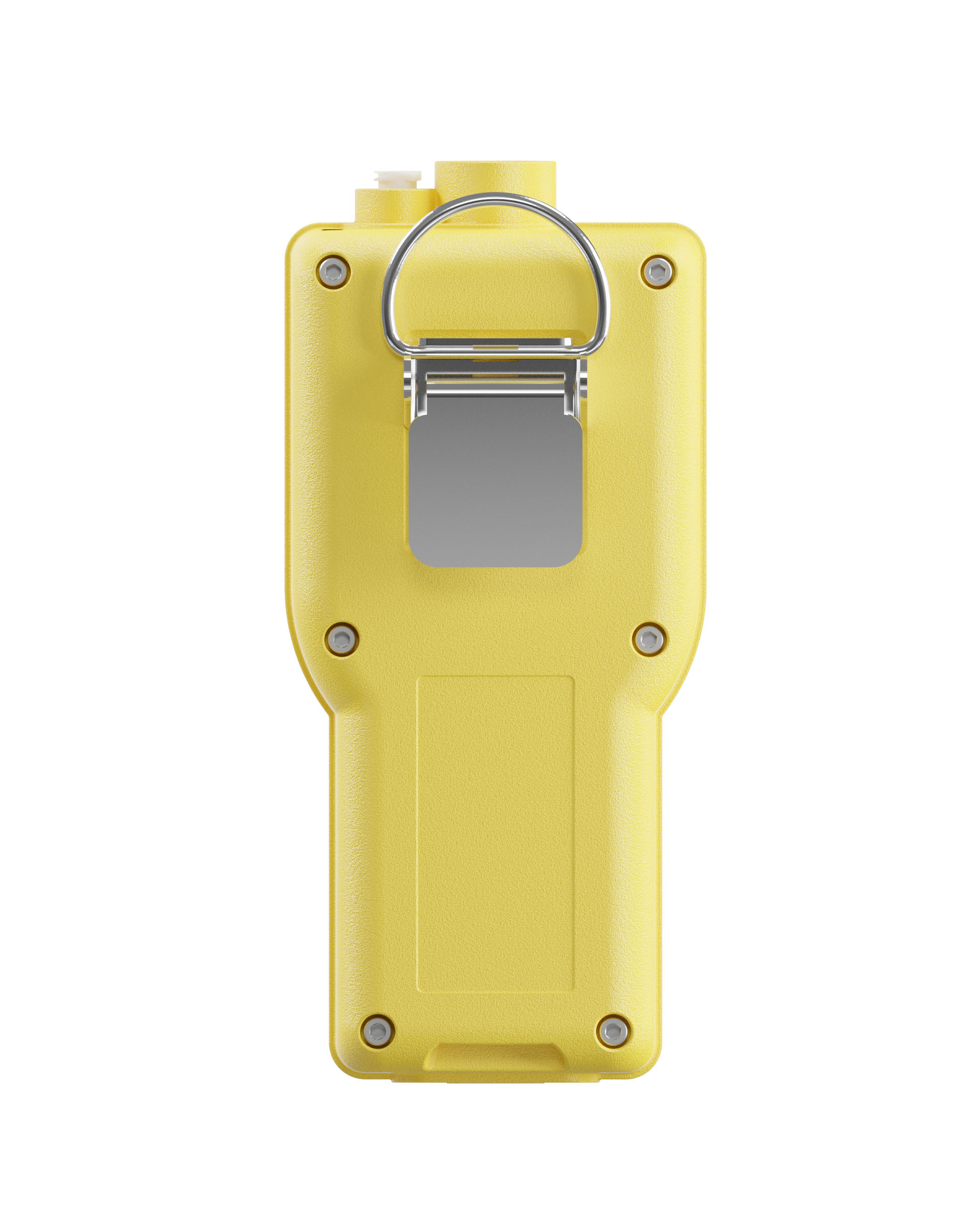

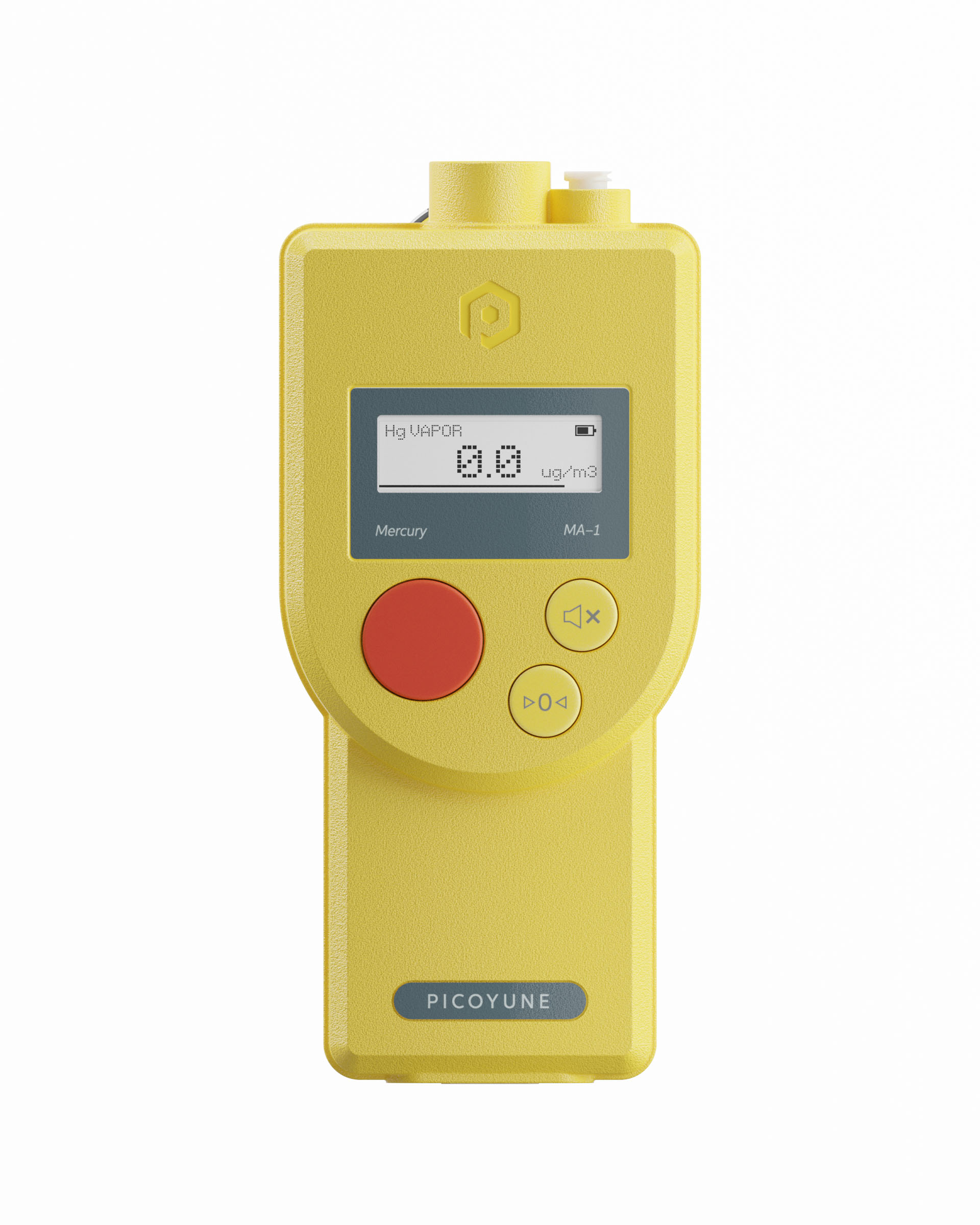

Personal Mercury Vapor Monitor

Proprietary Plasmonic Sensors —

Picoyune’s proprietary plasmonic sensor technology is sensitive and selective. Have confidence in the MA-1, which is not cross-sensitive to hydrocarbons (BTEX, VOC, etc.) which cause significant false readings in the incumbent UV spectroscopic methods. The MA-1 covers the entire range of hazardous mercury levels; it is sensitive to parts per billion concentrations and quantitative above the IDLH limit (10,000 µg/m³).

Specifications:

• detection method – plasmonic
• size – 150x65x30 mm
• weight – 280 grams
• calibrated range – 0 to 10,000 μg/m3
• LOD – 1 μg/m3 (ideal conditions),
• 3 μg/m3 (typical conditions)
• sample period – 30 seconds
• zero correction – automatic
• recalibration method – factory
• battery life – 16 hours
• battery – UN38.3
• alarm – audible 85dB, visual
• alarm level – high/low alarm (user set)
• data storage – 6 months internal
• data transfer – via USB to PC
• selective against – VOC, humidity (non-condensing), CO2 , O2 , SO2 , NOx, and BTEX

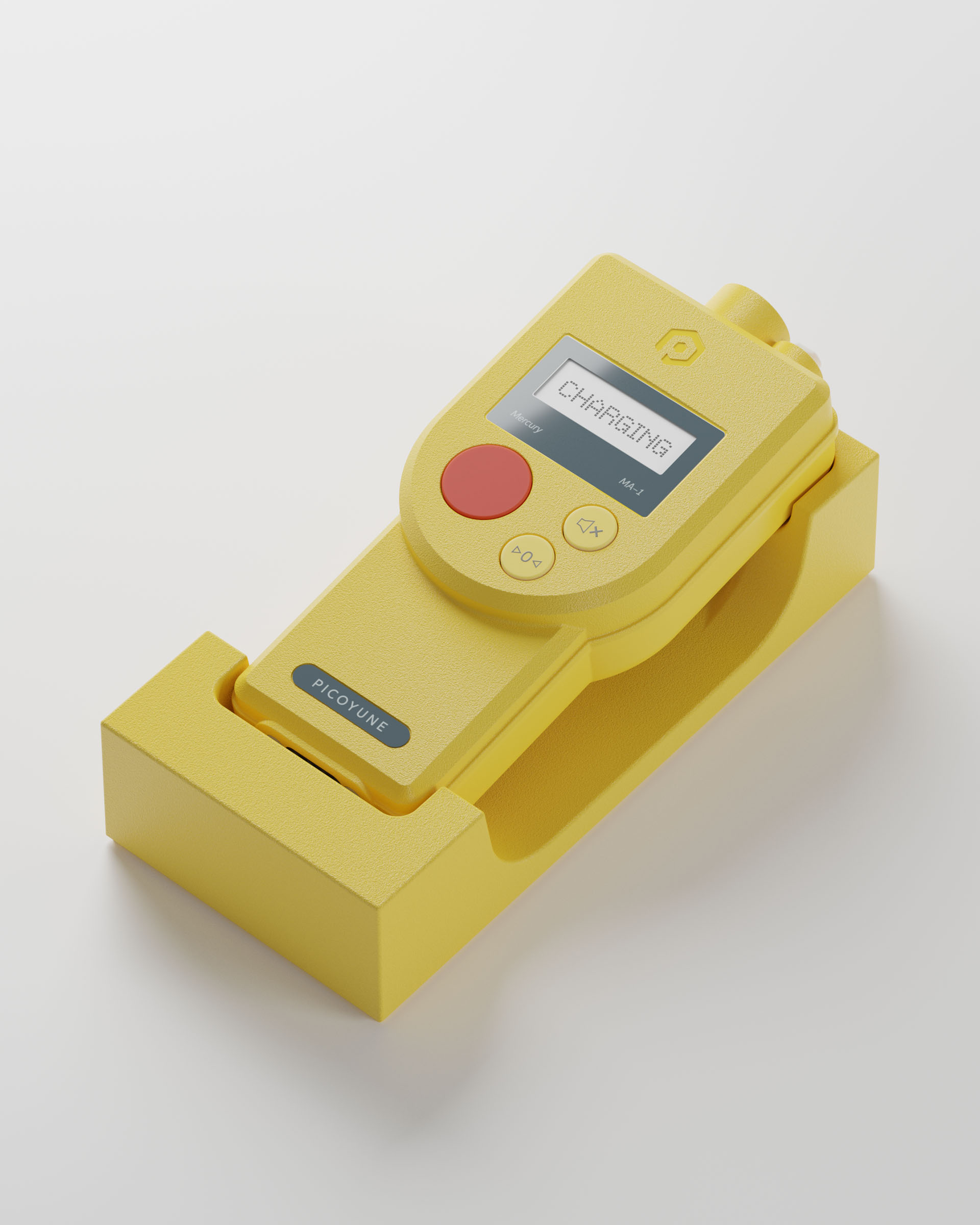

Includes: monitor, particulate filters (4x), base station for charging and data transfer, case, and software to connect the MA-1 to a PC.
