Operatory equipment for the IABDM PROTECT protocol.

VANGUARD Mobile 3 in Dental Office

At Source Oral Aerosol Vacuum for The Protect Protocol

Each room where mercury fillings are removed must have adequate filtration in place which requires a high-volume air filtration system (such as an at source oral aerosol vacuum) capable of removing mercury vapor and amalgam particles generated during the removal of mercury amalgam dental fillings.

The VANGUARD Mobile 3 (VGM3) Oral Aerosol Vacuum & Air Purification System is the leader in protecting dental professionals from toxic mercury and harmful aerosols. As contaminated air passes through the VANGUARD Mobile 3, the activated carbon, and HEPA® Filter work in conjunction to capture ultra fine air borne particles & microorganisms, including dust, smoke, allergens, virus, bacteria, mold, gasses, odors, & VOCs, as well as mercury vapors and particulate matter. The unit ships with a hose that is extendable up to 6″.

ImageNamePriceBuyShort Description
ImageNamePriceBuyShort Description

FILTER CHANGE OUT SUBSCRIPTIONS
Filters don’t last forever and when they become oversaturated they can release harmful elements such as mercury back into the operatory. It is important to change out the VGM3 filters on a regular basis as mercury vapor is invisible and has no odor or taste, so you will not be able to use your senses to determine if the filter should be changed. The manufacturer warranty will remain in effect as long as you maintain a proper filter change out schedule according to the manufacturer recommendations. Additionally, you will receive filter discounts and FREE shipping on all filter change out subscriptions.

The manufacturer of the Vanguard Mobile 3 has the following recommendations for filter change out schedules. Determining the life of a filter requires many factors, most of which are quite variable from one dental office to another, so please use the information below as a guide when determining the change out schedule of your charcoal filter (roughly 15 hours of use).

ACTIVATED CHARCOAL FILTER SUBSCRIPTIONSHEPA FILTER SUBSCRIPTIONS
Replace Charcoal filter every…Replace HEPA filter every…
month if 60 amalgam removals/month2 months if 60 amalgam removals/month
2 months if 30 amalgam removals/month4 months if 30 amalgam removals/month
3 months if 20 amalgam removals/month6 months if 20 amalgam removals/month
ImageNamePriceBuyShort Description
Activated Charcoal Filter for Vanguard Mobile3 Subscriptions
Activated Charcoal Filter for Vanguard Mobile3 SubscriptionsFrom: Original price was: $96.67.Current price is: $87.00. / month
Choose a subscription plan:

The internal, activated charcoal filter for the VANGUARD Mobile 3 acts like a chemical sponge to absorb mercury vapors and it eliminates 95% of all odors.
Subscribe now and save money on your filter replacements while extending your warranty.

Charcoal Filter Change-out Subscription. FREE SHIPPING!

HEPA Filter for Vanguard Mobile3 Subscriptions
HEPA Filter for Vanguard Mobile3 SubscriptionsFrom: Original price was: $195.00.Current price is: $180.38. every 2 months
Choose a subscription plan:

The internal, HEPA filter for the VANGUARD Mobile 3 eliminates 95% of all odors.
Subscribe now and save money on your filter replacements while extending your warranty.

HEPA Filter Change-out Subscription. FREE SHIPPING!

ImageNamePriceBuyShort Description

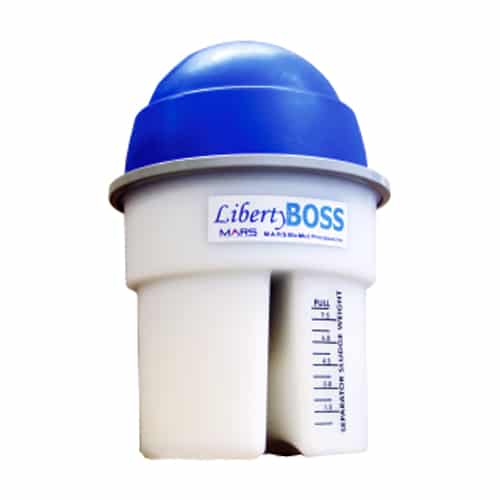

MARS biomed LibertyBoss amalgam separator

Liberty Boss Amalgam Separator

The amalgam separator MUST meet the EPA’s Dental Office Point Source Category Rule. The EPA as well as your state and local authority, mandates that the mercury separator MUST be properly installed, utilized, and maintained to collect mercury amalgam waste so that it is not released into the effluent from the dental office. The IABDM suggests a log is kept with the maintenance dates, filter change dates and initials of the employee that serviced the mercury separator. The log should be kept where it is easily seen.

At a compact 13.5″ X 19″, the LibertyBOSS offers a unique ergonomic design allows complete installation flexibility – wall, floor or central installation mounts. Installation is fast, maintenance is simplified, and down-time is only minutes. A detachable self-contained unit means you get a new unit at every service life interval – this means no leaking cartridges, no messy in-house decanting, no mercury spills, no mercury vapor, and no environmental or OSHA infractions. The unit is certified at greater than 99% separation (ISO 11143 and ADA). The LibertyBOSS Amalgam Separator Kit comes with plumbing and quick connect installation parts.

M.A.R.S.’ LINZ program is a combination of one bottle of CleanLINZ, (an aggressive system) and two bottles of PowerLINZ, (a maintenance system.) This way we can control the reduction of the bio film and not flood your evac-u-trap, amalgam separator or pipe unions with released sludge.

1 x CleanLINZ breaks down and digests organic waste through the entire evacuation system which restores vacuum suction to its maximum capacity. The proprietary formula of bacteria colonizes through the evacuation system.

2 x PowerLINZ is fast and effective. Our formulation controls the rapid bacterial build-up inside the suction lines along with the amalgam separator and is especially created for your “BOSS”.

ImageNamePriceBuyShort Description
MARS biomed LibertyBoss amalgam separator
LibertyBOSS Amalgam Separator New Installation Kit Original price was: $1,525.00.Current price is: $1,500.00.

At a compact 13.5″ X 19″, the LibertyBOSS offers a unique ergonomic design allows complete installation flexibility – wall, floor or central installation mounts. Installation is fast, maintenance is simplified, and down-time is only minutes. A detachable self-contained unit means you get a new unit at every service life interval – this means no leaking cartridges, no messy in-house decanting, no mercury spills, no mercury vapor, and no environmental or OSHA infractions. The unit is certified at greater than 99% separation (ISO 11143 and ADA). The LibertyBOSS Amalgam Separator Kit comes with plumbing and quick connect installation parts.

MARS BIO-MED LINZ 3 Pack
MARS BIO-MED LINZ 3 Pack Original price was: $299.00.Current price is: $290.00. — or Original price was: $290.00.Current price is: $275.50. / year
Choose a purchase plan:

M.A.R.S.’ LINZ program is a combination of one bottle of CleanLINZ, (an aggressive system) and two bottles of PowerLINZ, (a maintenance system.) This way we can control the reduction of the bio film and not flood your evac-u-trap, amalgam separator or pipe unions with released sludge.

1 x CleanLINZ breaks down and digests organic waste through the entire evacuation system which restores vacuum suction to its maximum capacity. The proprietary formula of bacteria colonizes through the evacuation system.

2 x PowerLINZ is fast and effective. Our formulation controls the rapid bacterial build-up inside the suction lines along with the amalgam separator and is especially created for your “BOSS”.

ImageNamePriceBuyShort Description

Mercury Detection & Remediation

chemteq mercury wipe 306

Mercury Detection Color Changing Wipes

The Mercury ChemWipe 306 is a colorimetric surface wipe designed to provide real-time indication of the presence of trace amounts of mercury and mercury II compounds on surfaces. The Mercury ChemWipe is selective and sensitive. The unique design of the ChemWipe provides uniform color change formation enabling user to quantify chemical contamination using the color comparator. After using the Mercury Surface Wipes, use the Mercury Color Comparator to quantify the mass of mercury collected on the Mercury Surface Wipe

ImageNamePriceBuyShort Description
chemteq mercury comparator 306-6000
Mercury Color Comparator$55.00

After using the Mercury Surface Wipes, use the Mercury Color Comparator to quantify the mass of mercury collected on the Mercury Surface Wipe

chemteq mercury wipe 306
Mercury Detection Surface Wipes - 5 pack$65.00 — or subscribe and save up to 5%

The Mercury ChemWipe 306 is a colorimetric surface wipe designed to provide real-time indication of the presence of trace amounts of mercury and mercury II compounds on surfaces. The Mercury ChemWipe is selective and sensitive. The unique design of the ChemWipe provides uniform color change formation enabling user to quantify chemical contamination using the color comparator.

chemteq mercury wipe 306
Mercury Detection Surface Wipes (5 pack) & Color Comparator Original price was: $120.00.Current price is: $115.00.

The Mercury ChemWipe 306 is a colorimetric surface wipe designed to provide real-time indication of the presence of trace amounts of mercury and mercury II compounds on surfaces. The Mercury ChemWipe is selective and sensitive. The unique design of the ChemWipe provides uniform color change formation enabling user to quantify chemical contamination using the color comparator. After using the Mercury Surface Wipes, use the Mercury Color Comparator to quantify the mass of mercury collected on the Mercury Surface Wipe

ImageNamePriceBuyShort Description
mercury particulate wipes

Mercury Clean Up Wipes

Mercury Clean-up Wipes eliminate dangerous mercury residue from surfaces, equipment, hands and help suppress hazardous vapors. 30 per bottle.

  • Formula is designed for final wipe-down to help suppress any remaining vapors to limit worker exposure
  • Effectively removes dangerous residue from hands, equipment, tools, instruments and hard surfaces that have been exposed to mercury
  • Durable plastic container with snap-tight lid neatly dispenses wipers individually while keeping the remainder clean and moist
ImageNamePriceBuyShort Description
mercury particulate wipes
Mercury Particulate Clean-up Wipes - 30 per bottle #DSS Original price was: $30.00.Current price is: $25.00. — or subscribe and save up to 10%
Choose a purchase plan:

Mercury Clean-up Wipes eliminate dangerous mercury residue from surfaces, instruments, equipment, hands and help suppress hazardous vapors. 30 per bottle.

ImageNamePriceBuyShort Description

FREQUENTLY ASKED QUESTIONS – VANGUARD Mobile 3

If you do not see your question listed below, please email us at Vanguard-Mobile3@dentalsafetysolutions.com and we will respond to your inquiry and then post the answer to the FAQ.

Regarding the concern about the flexible hose, let me first explain our rational to use this type of hose for the dental aerosol extraction, as there are other extraction arms such as the articulating metal arms that you may see provided with some other units. Based on many feedbacks we have received from the dental community, the concern is accumulation of germs in the articulating metal pipe and connecting joints, which are very difficult to clean and sanitize. Therefore, we have gone with the flexible hose where we further process it to make it more rigid and self-supporting. Accumulation of germ is much reduced in this hose and further sanitization of it is practical. Some offices maintain a spare hose, where they interchange while they sanitize the other one, with the use of a brush with a long handle and sanitizing liquid applied over a sink.

The VANGUARD Mobile 3 Oral Aerosol Vacuum system ships as a recycled air unit.

Negative pressure in the room (so that air flows under the door gap into the room) and leakage of contaminated air is avoided into the other rooms. HealthyAir® Source Capture System can be set up to provide multiple air changes per hour.

The air change/hr (ACH) is a simple calculation as follows:

1: calculate the volume of air in the room, for 10’x 10’ with 8’ celling, the volume will be 800cubic ft. Then the single inlet unit at the mid speed moves 90 cfm, so in one hour 90 x60 min/hr = 5,400 cubic of air has been treated by the unit. You then divide 5,400 / 800 and get 6.75, meaning that the air in the room goes 6.75 times through the unit per hour. ACH of 6 is generally recommended for the existing negative pressure rooms. At high speed, the unit delivers 130 cfm, so the ACH would be 9.75.

Larger rooms would require more CFM. One approach could be to use two VGM3 units with 122 CFM rating. This will provide ACH of 6.35 for a 12’ x 12’with 8’ ceiling.

Off course this is just an approximate number, as the air in the corner of the room may have a longer time to go through the unit, than the air close to the air purifier. But that is what is used to specify the ACH. Think of your swimming pool and the filter system. If you pass the dirty water in one section through the filter most of the time, instead of the water in the other side of the pool which may be cleaner, then the resulting pool will be much cleaner. That is the concept of source capture.

REGARDING CFM (see attached graphic)
Every fan has an airflow/pressure curve, as shown in the attached graphic.  The free delivery is when the fan is running by itself outside of any enclosure, where there is no resistance to air flow.  A lot of air purifiers specify the free delivery as the air flow rate, which is very misleading and means nothing about the actual unit. Dentairvac statement of 770 cfm and 12 air changes is not accurate.  Note that in the same spec, they then say the fan rating is noted as 770 cfm.  There is a big difference when you put a fan with this rating into a box and connect a hose to it.  The resulting CFM is much less.
When you install the fan in an enclosure with some filters, that create resistance to flow of air, or pressure drop, inch of water.  There is a relationship between the airflow through that system and the pressure drop.
That is the yellow line in above picture.  When that line intersect the fan curve, that establishes the actual flow rate of the unit,  that is the 122 CFM of the VANGUARD Mobile 3 unit.  That CFM is constant through out the unit, what ever it is at the inlet of the hose, it is the same through the unit and that is what discharges, this is conservation of mass.  Whatever goes in, must comes out.

The approximate weight and base dimensions of the unit is: 39 lbs. – 14” x 10” w x 21.5” . The extraction arm hose length is 6 feet long. This portable floor unit is designed to be positioned in close proximity to the workstation, however in some cases remote location of units is required.

Yes, by easily adjusting the flexible hose, the hoods of the extraction arms can be strategically positioned to capture impure air.

We ship out a single 6 foot hose with each unit. The length of the hose will affect the CFM at the inlet of the hose.

  • Increasing hose length, increases the pressure loss which decreases the CFM
  • Increasing hose diameter, decreases the pressure loss and increases the CFM

The VANGUARD Mobile 3 unit offer a simple remote-control operation and is equipped with a three-speed fan that enables control of air flow and sound level.

Low Speed: 50 dBA
Medium: 52 dBA
High: 54 dBA

One cannot have powerful oral suction without noise from a fan as the more cfm and pressure you treat, there will be more noise. But with that said, we have one of the most quiet oral aerosol vacuum machines on the market.

We are working towards offering a disposable plastic cover that would go over the outside of the front and inlet of the hose. But at this time we do not have a specific product for sale. Until then, one can utilize the plastic head rest cover from their dental chair and cut a hole in it to place over the front of the hose inlet as seen in the picture to the left.

Possible issues are unraveling of the hose, especially at the connection point to the unit.  It is a spiral construction, and possible to put it back together.  Although I doubt a dentist would want to do that.  We have them in stock.  For the past five years, we’ve had very few cases, out of few thousand units. The black plastic pipe end of the hose just slides over the inlet pipe of the VGM, there is no clamp. It’s a pressure fit and is very secure.

Yes, each VANGUARD Mobile 3 unit will come with a Charcoal Filter and a HEPA Filter.

FILTER CHANGE OUT SUBSCRIPTIONS
Filters don’t last forever and when they become oversaturated they can release harmful elements such as mercury back into the operatory. It is important to change out the VGM3 filters on a regular basis as mercury vapor is invisible and has no odor or taste, so you will not be able to use your senses to determine if the filter should be changed. The manufacturer warranty will remain in effect as long as you maintain a proper filter change out schedule according to the manufacturer recommendations. Additionally, you will receive filter discounts and FREE shipping on all filter change out subscriptions.

The manufacturer of the Vanguard Mobile 3 has the following recommendations for filter change out schedules. Determining the life of a filter requires many factors, most of which are quite variable from one dental office to another, so please use the information below as a guide when determining the change out schedule of your charcoal filter (roughly 15 hours of use).

ACTIVATED CHARCOAL FILTER SUBSCRIPTIONS

These charcoal filter subscriptions extend the manufacturer warranty.

  • Replace charcoal filter every month if 60 amalgam removals/month
  • Replace charcoal filter every 2 months if 30 amalgam removals/month
  • Replace charcoal filter every 3 months if 20 amalgam removals/month
ImageNamePriceBuyShort
Activated Charcoal Filter for Vanguard Mobile3 Subscriptions
Activated Charcoal Filter for Vanguard Mobile3 SubscriptionsFrom: Original price was: $96.67.Current price is: $87.00. / month
Choose a subscription plan:

The internal, activated charcoal filter for the VANGUARD Mobile 3 acts like a chemical sponge to absorb mercury vapors and it eliminates 95% of all odors.
Subscribe now and save money on your filter replacements while extending your warranty.

Charcoal Filter Change-out Subscription. FREE SHIPPING!

HEPA FILTER SUBSCRIPTIONS
The HEPA® Filter works to capture ultra fine air borne particles and microorganisms, including dust, smoke, allergens, virus, bacteria, mold, gasses, odors, and VOCs, as well as particulate matter.

These HEPA filter subscriptions extend the manufacturer warranty.

  • Replace HEPA filter every 2 months if 60 amalgam removals/month
  • Replace HEPA filter every 4 months if 30 amalgam removals/month
  • Replace HEPA filter every 6 months if 20 amalgam removals/month
ImageNamePriceBuyShort
HEPA Filter for Vanguard Mobile3 Subscriptions
HEPA Filter for Vanguard Mobile3 SubscriptionsFrom: Original price was: $195.00.Current price is: $180.38. every 2 months
Choose a subscription plan:

The internal, HEPA filter for the VANGUARD Mobile 3 eliminates 95% of all odors.
Subscribe now and save money on your filter replacements while extending your warranty.

HEPA Filter Change-out Subscription. FREE SHIPPING!

The CDC has written a great article

Interim Infection Prevention and Control Recommendations for Patients with Suspected or Confirmed Coronavirus Disease 2019 (COVID-19) in Healthcare Settings.

once on the CDC page, go down and read #4

Take Precautions When Performing Aerosol-Generating Procedures (AGPs)

  • Some procedures performed on patient with known or suspected COVID-19 could generate infectious aerosols. In particular, procedures that are likely to induce coughing (e.g., sputum induction, open suctioning of airways) should be performed cautiously and avoided if possible.
  • If performed, the following should occur:
    • HCP in the room should wear an N95 or higher-level respirator, eye protection, gloves, and a gown.
    • The number of HCP present during the procedure should be limited to only those essential for patient care and procedure support. Visitors should not be present for the procedure.
    • AGPs should ideally take place in an AIIR.
    • Clean and disinfect procedure room surfaces promptly as described in the section on environmental infection control.

Formerly, negative pressure isolation room, an AIIR is a single-occupancy patient-care room used to isolate persons with a suspected or confirmed airborne infectious disease. Environmental factors are controlled in AIIRs to minimize the transmission of infectious agents that are usually transmitted from person to person by droplet nuclei associated with coughing or aerosolization of contaminated fluids.

AIIRs should provide

  • negative pressure in the room (so that air flows under the door gap into the room);
  • and an air flow rate of 6-12 ACH (6 ACH for existing structures, 12 ACH for new construction or renovation);
  • and direct exhaust of air from the room to the outside of the building or recirculation of air through a HEPA filter before retruning to circulation (MMWR 2003; 52 [RR-10]; MMWR 1994; 43 [RR-13]).

Here are the CDC Engineered specifications for positive- and negative pressure rooms, and a handy pdf on how to create Airborne Infection Isolation Rooms.

The VANGUARD Mobile 3 unit comes with a 1-Year Limited Warranty (“Limited Warranty”) to the original retail purchaser who submits the Warranty Registration Card that comes with the system, within 10 days of purchase.

The manufacturer warranty will remain in effect as long as you maintain a proper filter change out schedule according to the manufacturer recommendations. Additionally, you will receive filter discounts and FREE shipping on all filter change out subscriptions.

The manufacturer of the Vanguard Mobile 3 has the following recommendations for filter change out schedules. Determining the life of a filter requires many factors, most of which are quite variable from one dental office to another, so please use the information below as a guide when determining the change out schedule of your charcoal filter (roughly 15 hours of use).

ACTIVATED CHARCOAL FILTER SUBSCRIPTIONS

These charcoal filter subscriptions extend the manufacturer warranty.

  • Replace charcoal filter every month if 60 amalgam removals/month
  • Replace charcoal filter every 2 months if 30 amalgam removals/month
  • Replace charcoal filter every 3 months if 20 amalgam removals/month
ImageNamePriceBuyShort
Activated Charcoal Filter for Vanguard Mobile3 Subscriptions
Activated Charcoal Filter for Vanguard Mobile3 SubscriptionsFrom: Original price was: $96.67.Current price is: $87.00. / month
Choose a subscription plan:

The internal, activated charcoal filter for the VANGUARD Mobile 3 acts like a chemical sponge to absorb mercury vapors and it eliminates 95% of all odors.
Subscribe now and save money on your filter replacements while extending your warranty.

Charcoal Filter Change-out Subscription. FREE SHIPPING!

HEPA FILTER SUBSCRIPTIONS
The HEPA® Filter works to capture ultra fine air borne particles and microorganisms, including dust, smoke, allergens, virus, bacteria, mold, gasses, odors, and VOCs, as well as particulate matter.

These HEPA filter subscriptions extend the manufacturer warranty.

  • Replace HEPA filter every 2 months if 60 amalgam removals/month
  • Replace HEPA filter every 4 months if 30 amalgam removals/month
  • Replace HEPA filter every 6 months if 20 amalgam removals/month
ImageNamePriceBuyShort
HEPA Filter for Vanguard Mobile3 Subscriptions
HEPA Filter for Vanguard Mobile3 SubscriptionsFrom: Original price was: $195.00.Current price is: $180.38. every 2 months
Choose a subscription plan:

The internal, HEPA filter for the VANGUARD Mobile 3 eliminates 95% of all odors.
Subscribe now and save money on your filter replacements while extending your warranty.

HEPA Filter Change-out Subscription. FREE SHIPPING!

The science is clear. The process of removing amalgam fillings generates vast amounts of both mercury vapor and mercury contaminated particulate matter that become aerolsized in the breathing zone of the dental professionals. The ultra-fine mercury particles are filtered out in the HEPA filter, while the gaseous mercury is captured by the activated carbon filter.

When mercury is captured by activated carbon, both physisorptive as well as chemisorptive mechanisms come into play.  Untreated activated carbon, which is used in the VANGUARD Mobile 3 activated carbon filter, captures gaseous mercury by physisorption, like a porous sponge collection.

Treated activated carbon, captures mercury by both mechanisms and provides an even higher filter life before replacement is needed, which is estimated to be as much as three to four times higher.

Please read this article: Can HEPA Air Purifiers Capture the Coronavirus? where it states…
The virus that causes COVID-19 is approximately 0.125 micron (125 nanometers) in diameter. That falls squarely within the particle-size range that HEPA filters capture with extraordinary efficiency: 0.01 micron (10 nanometers) and above. Many media outlets have incorrectly stated that HEPA filters don’t filter below 0.3 micron, and therefore could not capture airborne coronavirus. That is incorrect. (This NASA study of HEPA filtration is quite technical, but the graph on page 7 and the preceding paragraph do a good job of explaining why HEPA filters are actually most efficient—almost 100 percent at 0.01 micron—at capturing ultrafine particles below the 0.3 micron HEPA test standard.)

The VANGUARD Mobile 3 units are meant solely for suctioning aerosols from the air that have been generated during dental procedures. This device is not and should not be used as a traditional vacuum, because it is not one.
